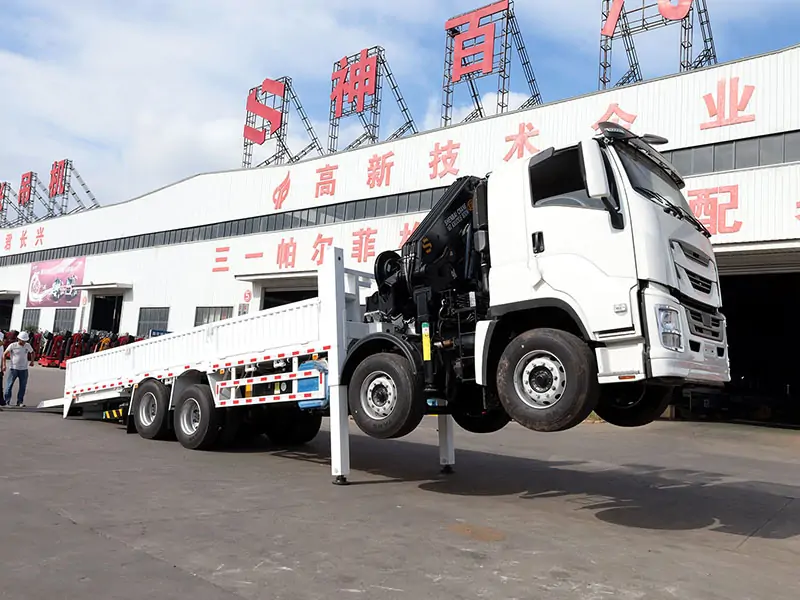

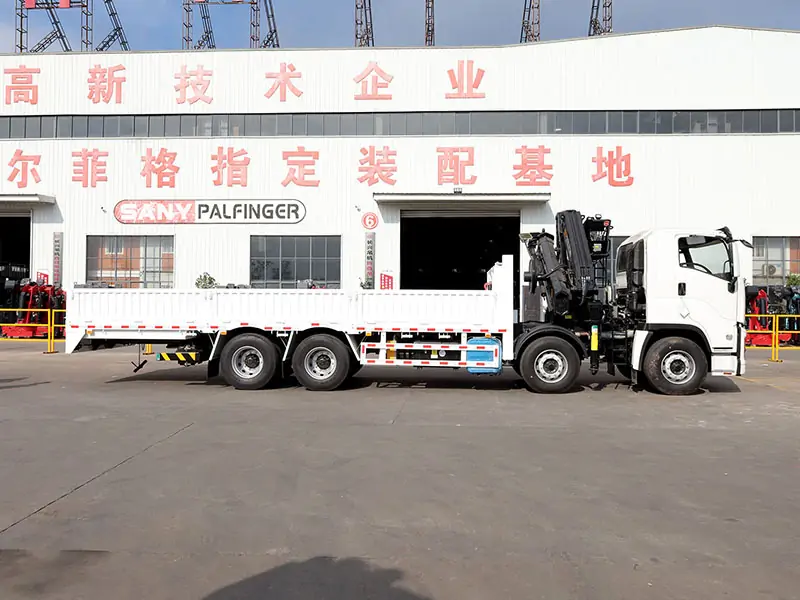

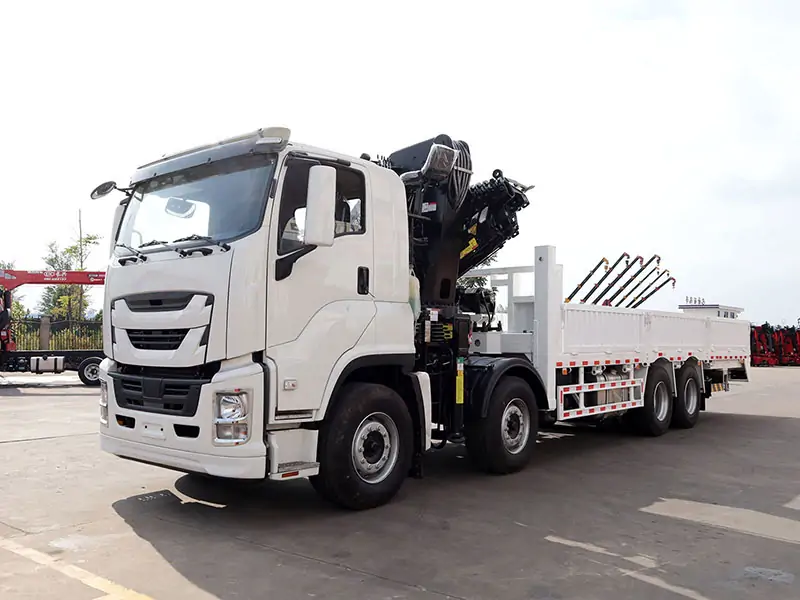

ISUZU Heavy-Duty 12-Wheel Truck with SHENBAI 16-Ton Folding Boom Crane for Sale

Maximize productivity with our premium ISUZU 12-wheel heavy-duty truck equipped with a SHENBAI 16-ton folding arm crane. This powerful combination delivers unmatched lifting performance for construction, logistics, and industrial applications worldwide.

Key Advantages:
16-ton lifting capacity with precise load control
Folding boom design for optimal space efficiency
360° full rotation for flexible operation
Heavy-duty ISUZU chassis ensures stability and durability
12-wheel configuration for superior load distribution
Hydraulic system for smooth and safe operation

Ideal for:
✓ Construction material handling
✓ Port and warehouse operations
✓ Heavy equipment installation
✓ Utility and infrastructure projects

Technical Specifications:
– Crane model: SHENBAI 16-ton knuckle boom
– Truck base: ISUZU 12-wheel heavy-duty
– Max working radius: 13.7 meters
– Boom sections: 6
– Rotation: 360° continuous

This truck-mounted crane combines Japanese ISUZU reliability with SHENBAI’s lifting expertise, creating the perfect solution for your heavy lifting needs.

Request a customized quote today and discover how this robust crane truck can enhance your operations!

12 wheel isuzu truck mounted shenbai 16 ton knuckle boom crane
GeneralVehicle BrandSHENBAI
Chassis BrandISUZU
Overall Dimension10200*2550*3820mm
GVW / Kerb Weight31000kg/22800kg
CabCab Capacity3 persons allowed
Air ConditionerHeating/cooling air conditioner
EngineFuel TypeDiesel
Engine BrandWeichai
Power380hp
Emission StandardEuro 5
ChassisDrive Type8×4
Transmission12-speed gearbox
Wheelbase1850+4575+1370mm
Tire Specification12.00R20
Tire Number12+1(Spare tire)
Max Speed90km/h
PaintMetallic paint
Upper BodyCrane TypeKnuckle boom crane
Crane BrandSHENBAI
Max. Lifting Capacity16 Ton
Boom Number6
Slewing Angle360° endless
Crane Weight5200kg
Installation Space1307mm

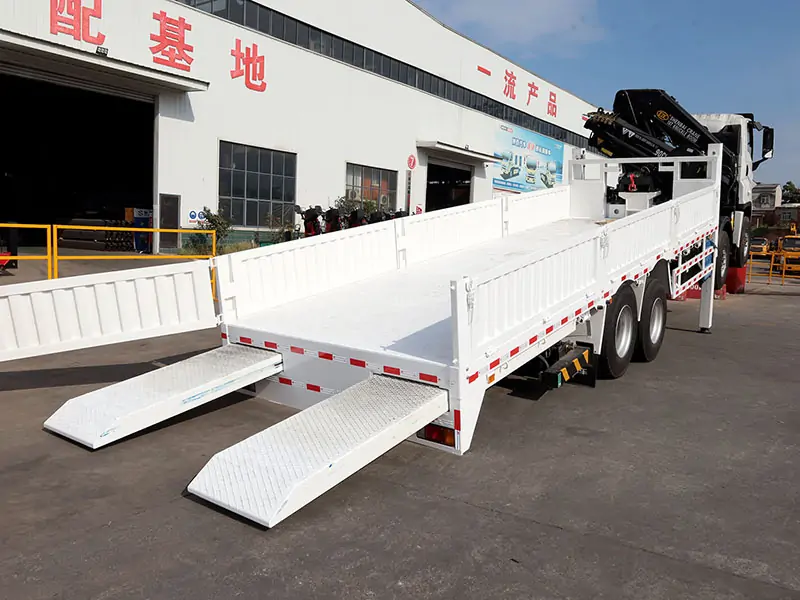

Cargo Box Dimension7200*2550*600mm
Optional**Telescopic boom crane
**Hydraulic tipper box
**Cargo box thickness according to requirement
**Cargo box height can be customized
**Remote control
