6×4 SHACMAN Tractor with Shenbai 36 Ton Knuckle Boom Crane | ||
---|---|---|
General | Vehicle Brand | SHENBAI |
Chassis Brand | SHACMAN | |
Overall Dimension | 8900*2550*3880mm | |
GVW / Kerb Weight | 31000kg/20500kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | WEICHAI | |
Power | 460hp | |
Emission Standard | Euro 6 | |
Chassis | Drive Type | 6×4 |
Transmission | 12-speed gearbox | |
Wheelbase | 5760+1350mm | |
Tire Specification | 12.00R20 | |
Tire Number | 10+1(Spare tire) | |
Max Speed | 90km/h | |
Paint | Metallic paint | |
Upper Body | Crane Type | Knuckle boom crane |
Max. Lifting Capacity | 36000kg | |
Boom Number | 7 | |
Slewing Angle | 360°Infinite rotation | |
Crane Weight | 7500kg | |
Installation Space | 1508mm | |
Cargo Box Dimension | / | |
Optional | **Telescopic boom crane | |
**Hydraulic tipper box | ||
**Cargo box thickness according to requirement | ||
**Cargo box height can be customized | ||
**Remote control |

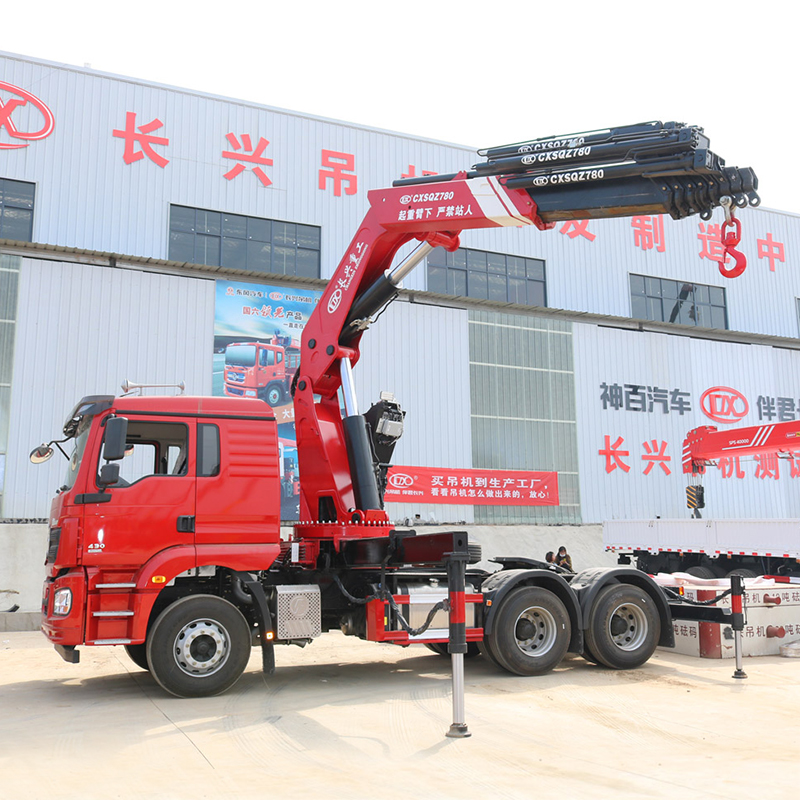

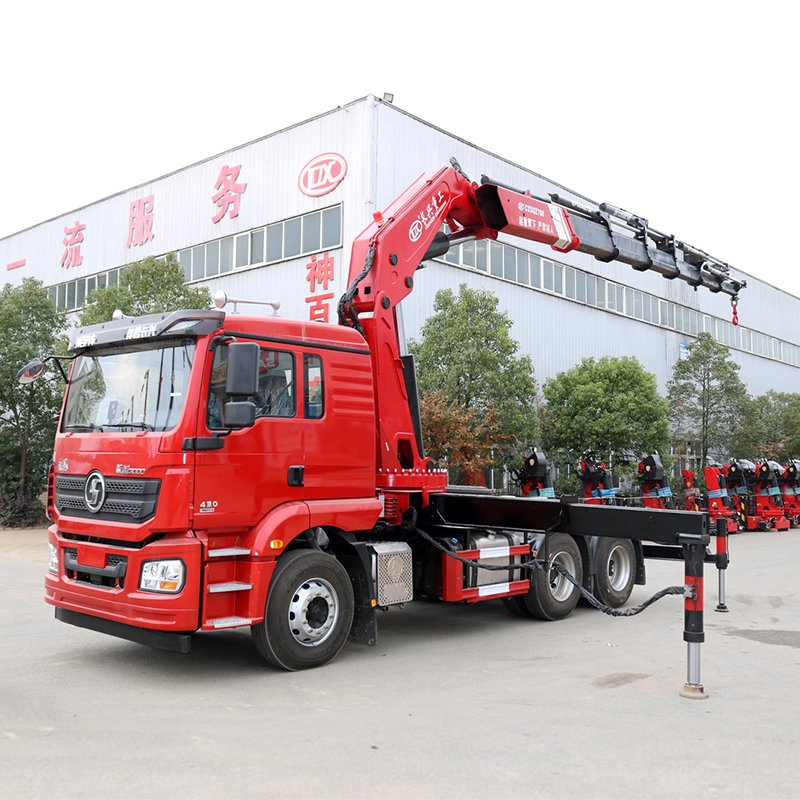

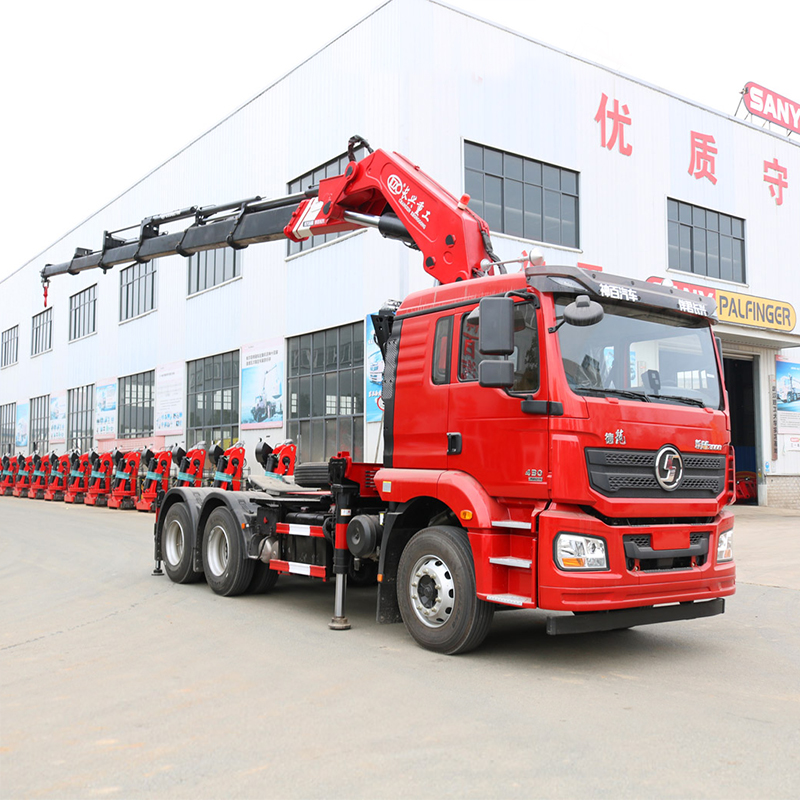

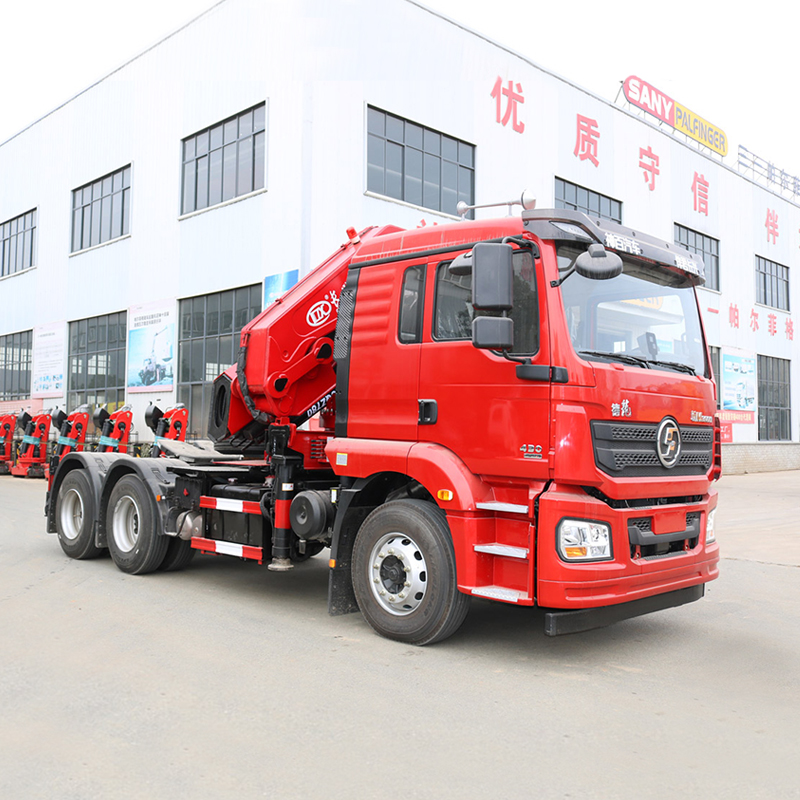

6×4 SHACMAN Tractor with Shenbai 36 Ton Knuckle Boom Crane
Designed for demanding transport and lifting operations, this unit features a massive **36-ton lifting capacity** paired with the superior flexibility of a **knuckle boom crane**, making it ideal for logistics, construction, and industrial applications.
Built on the rugged **SHACMAN 6×4 tractor chassis**, this setup delivers exceptional stability, traction, and long-haul performance. The **articulating knuckle boom** provides precise load positioning even in tight spaces, while the heavy-duty hydraulic system ensures smooth, reliable operation.
**Key Features:**
✔ **36-ton knuckle boom crane** – Superior lifting power with enhanced maneuverability
✔ **SHACMAN 6×4 tractor base** – Robust drivetrain for reliable transport and operation
✔ **Advanced hydraulics** – Smooth control and high efficiency
✔ **Durable construction** – Built to withstand rigorous working conditions
✔ **Versatile applications** – Perfect for heavy equipment handling, material loading, and more
