20 Ton Customized Knuckle Boom Crane Truck | China Factory Supplier | Brand Logo Support

Looking for a reliable and powerful knuckle boom crane truck? Our 20-ton cargo knuckle boom crane truck, manufactured directly by our Chinese factory, is your perfect choice. With advanced manufacturing techniques and strict quality control, this crane truck ensures high performance and long service life, making it ideal for various heavy-lifting tasks, from construction site operations to industrial material handling.

Key Features:
20 Tons Lifting Capacity – Heavy-duty knuckle boom crane for efficient cargo handling.
Fully Customizable – Add your brand logo, choose colors, and modify configurations.
High-Quality Construction – Made with durable steel, compliant with international safety standards.
Versatile Applications – Ideal for logistics, construction, shipping, and industrial use.
Competitive Pricing – Direct factory supply ensures the best value.

Technical Specifications:
Max Lifting Capacity: 20 tons
Boom Type: Knuckle (articulated) for flexible operation
Rotation Angle: 360° full rotation
Control System: Hydraulic with remote/wireless options
Certifications: CE, ISO, and customizable to meet local regulations

Why Choose Us?
🔹 OEM/ODM Accepted – Custom branding & design solutions.
🔹 Strict Quality Control – Reliable performance & long service life.
🔹 Global Shipping – Fast delivery to Europe, Africa, Southeast Asia, etc.
🔹 After-Sales Support – 24/7 technical assistance & warranty coverage.

Request a Quote Today! – Contact us for customization options and bulk order discounts.

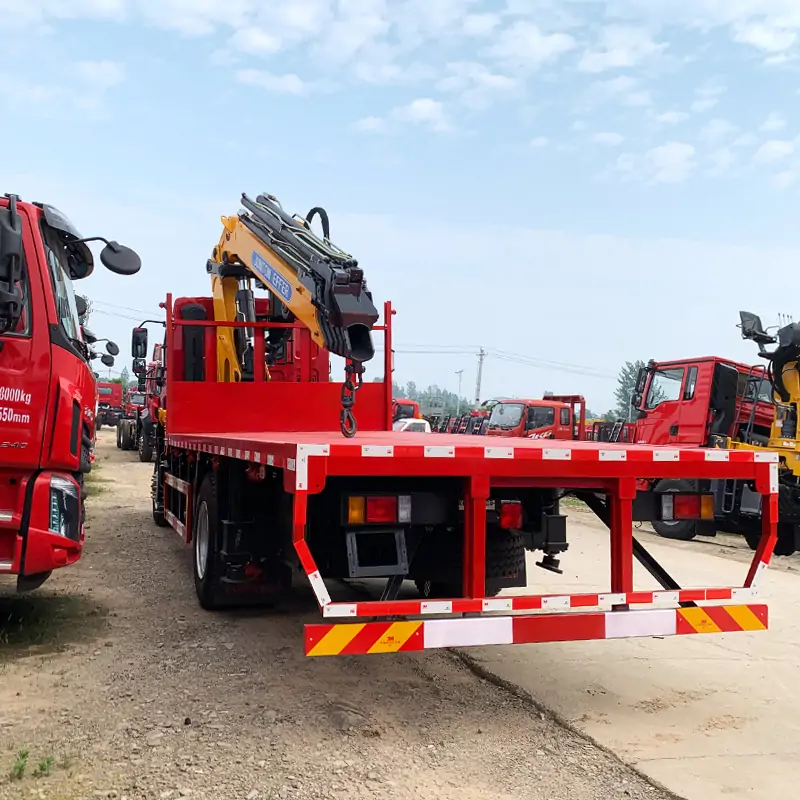

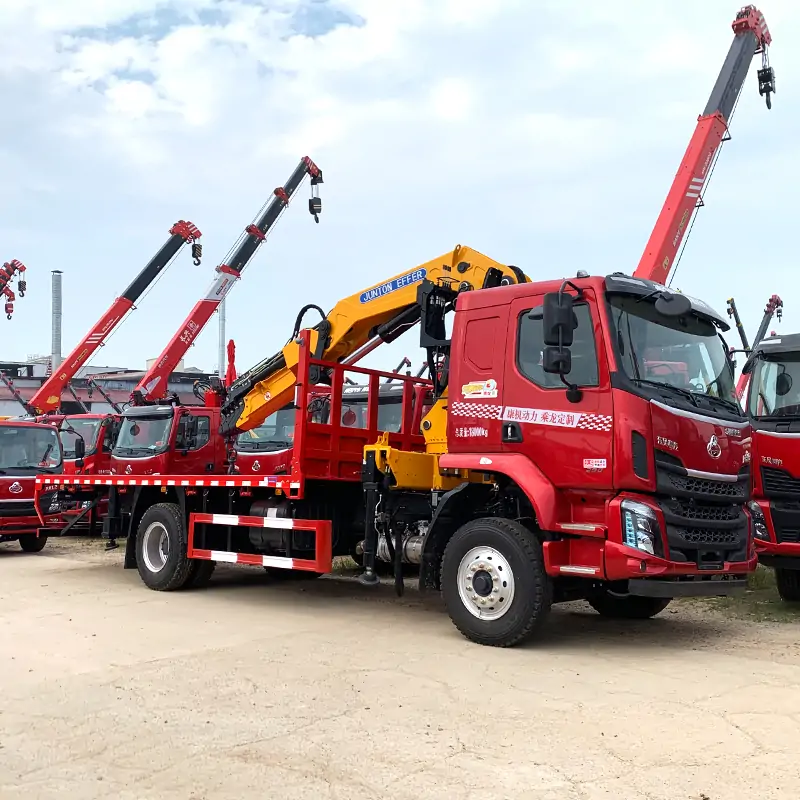

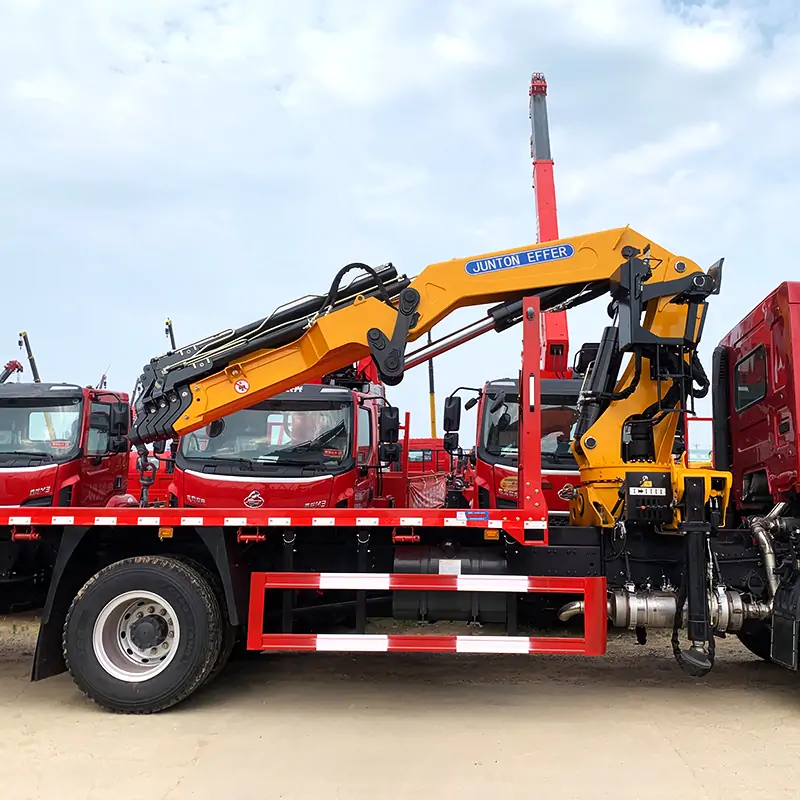

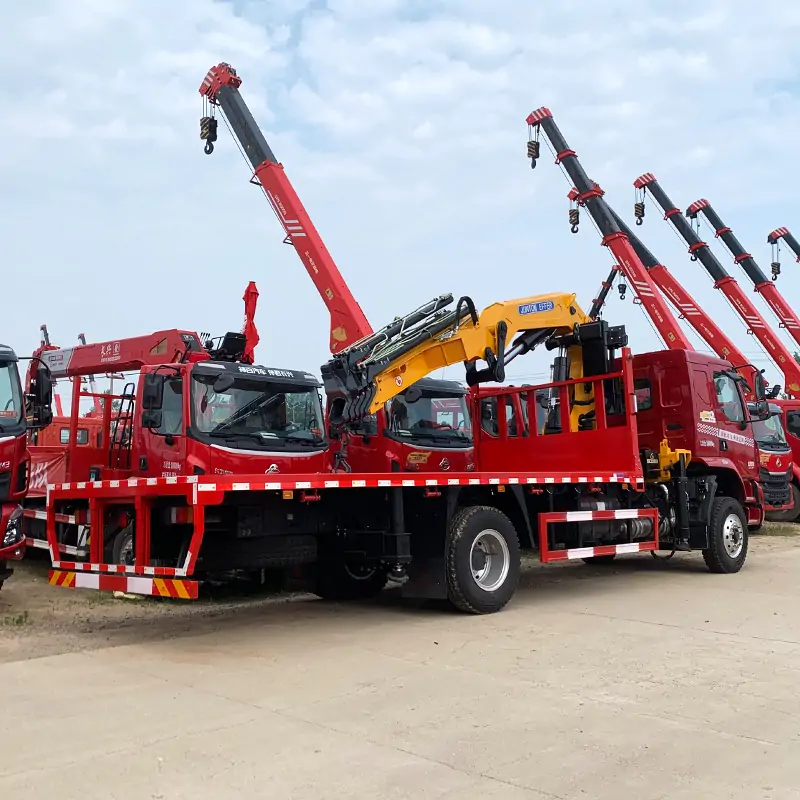

20 Ton Customized Knuckle Boom Crane Truck
GeneralVehicle BrandSHENBAI
Chassis BrandDongfeng
Overall Dimension9000*2500*3840mm
GVW / Kerb Weight18000kg/12000kg
CabCab Capacity3 persons allowed
Air ConditionerHeating/cooling air conditioner
EngineFuel TypeDiesel
Engine Brandcummins
Power240hp
Emission StandardEuro 6
ChassisDrive Type4×2
Transmission8-speed gearbox
Wheelbase5100mm
Tire Specification10.00R20
Tire Number6+1(Spare tire)
Max Speed90km/h
PaintMetallic paint
Upper BodyCrane TypeKnuckle boom crane
Crane BrandSHENBAI
Max. Lifting Capacity20000kg
Boom Number6
Slewing Angle360° endless
Crane Deadweight6200kg
Installation Space1494mm
Flatbed Dimension6000*2500mm
Optional**Telescopic boom crane
**Hydraulic tipper box
**Flatbed thickness according to requirement
**Cargo box height can be customized
**Remote control
